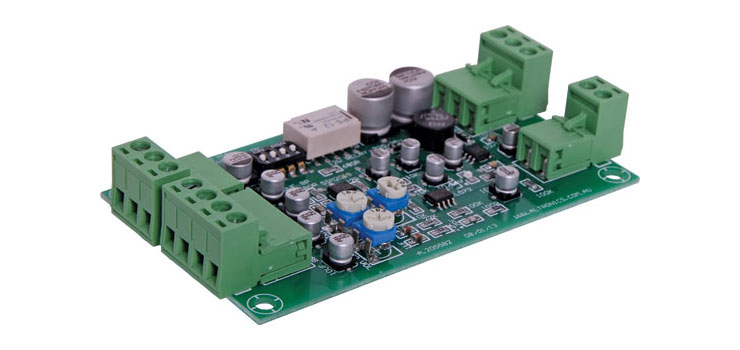

A-A2055A - Balanced Mic / Line Input Pre-Amp & Mixer
Our Price
$133.10+GST
Before You Purchase
Some notices for your customer before he/she purchase some of products from catalog.
Product Description
Features two line inputs and one mic input, each with its own level control. The mic input can be configured for either balanced or unbalanced operation. All inputs are mixed to a single line level output. It can be powered from either a single rail power supply (15V to 30V dc), or a dual rail power supply (±12V to ±30V dc).
PCB dimensions 100 x 57 mm
Specifications
Microphone gain: 60 dB
Mic input sensitivity: 0.7 mV rms
S/N ratio: 10 mV input -74dB
Frequency resp.: 150Hz to 20kHz , -3dB
Line. gain: 14dB
Line. input sensitivity: 200mV
Line. S/N ratio: 500mV input -77dB
Line. freq. resp.: 30Hz to 20kHz, -3dB
