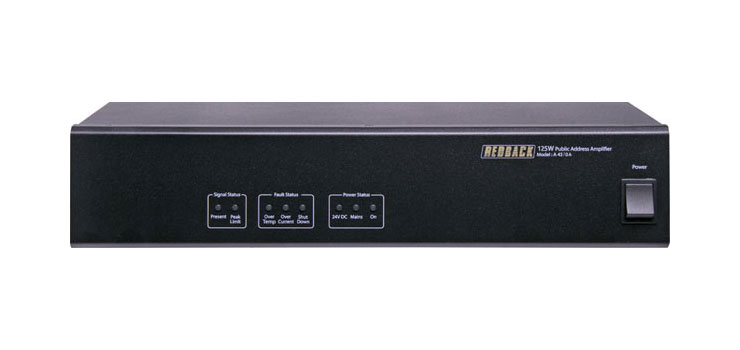

A-A4370A - 125W Public Address (PA) Power Amplifier

Product Description

This range of booster amplifiers are ideal for installations requiring high power zone amplifiers. Simply choose a power rating according to the wattage required for each zone. These high power models are ideal for use in shopping centres, pedestrian precincts, public transport facilities and convention centres. All models operate on 240V AC and 24V DC for battery backup operation. Input is via 3 pin balanced XLR (1V). Level control is rear mounted to prevent tampering or accidental adjustment.

The circuit design includes protection features in case of output over voltage, over current and over temperature conditions. All are self resetting once the fault condition has been removed. Visual indication via front panel LEDs show amplifier status at all times. On demand fan cooling ensures reliable operation at all times. A dedicated nominal 24V DC 1A output is provided on the rear to power ancillary devices.

Features
Robust design incorporating latest Mosfet technology
Very Low noise and distortion
70V, 100V and 4-16Ω outputs
240V AC or 24V DC operation
24V DC @ 1 Amp output for external devices
Multi stage thermally cued fan cooling
Output Peak Limited
Thermal Overload protected
Signal Presence Indicators
Fault Indicators
Power Status Indicators
Rack Mountable (suits 19 inch racks)
