A-A4510A - Yearly Programmable School Timer
Our Price
$1750.00+GST
Before You Purchase
Some notices for your customer before he/she purchase some of products from catalog.
Product Description

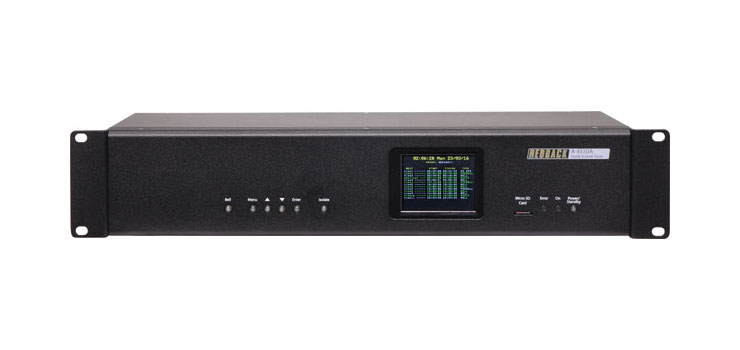

The A 4510A is an incredibly versatile, and easily programmed yearly timer housed in a convenient 2RU rack or desk mount chassis. The timing events are programmed with Windows based software via a user friendly calendar layout. When a timing event is activated, an MP3 audio file will be played and output through the dual RCA line level output. There are three MP3 playback options for the timing events, which include the Bell, Prebell and a Music option. An Micro SD card which is supplied, houses all the MP3 files to be played as well as storing all the timing events (Note: The audio files must be in MP3 format). The Prebell and Music outputs can be setup for random play of MP3 files, making the unit ideal for “Call to Class” playback of music which changes each time these outputs are activated.
The events when activated also trigger the 24V outputs available on the rear of the unit. Seperate 24V DC outputs are avail- able for each of the Prebell, Bell and Music outputs, as well as a common 24V DC output which is activated for all output conditions.
The timing events can also be programmed to trigger the Bell 24V out (and in turn the common 24V Out), with no audio output. This is activated by setting the output to the “relay” option in the programming setup.
The unit features “Daylight Savings” mode which when activated automatically adjusts the clock time by one hour at the user programmed dates. Dimensions: 482W x 180D x 88H
The internal clock has a battery backup (supplied) in case of power failure. (Note: This will only backup the time, it will not power the unit in the event of a power failure).
Box Contents
A 4510A Yearly School Timer
Micro SD card
24V 2A DC Plugpack
Instruction Booklet
Programming Booklet
Features
MP3 audio format for Bell, Prebell and Music timing outputs
Random play of MP3 files for Prebell and Music activations
Easy Windows based software timing event setup
Daylight savings mode
Local push button operation of Bell
Switched 24VDC output for Bell, Prebell and Music activations
Terminals for remote bell trigger activation
Pluggable screw terminal connections
Auxiliary level output
Battery backup of current time
24V DC operation
Standard 2U 19” rack mount case
Suitable for any amplifier with an auxiliary input
