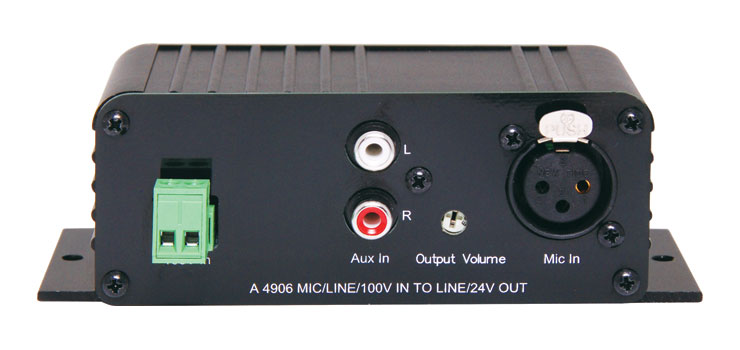

A-A4906 - Mic/Line/100V Input To Line +24V Switched Output
Our Price
$255.23+GST
Before You Purchase
Some notices for your customer before he/she purchase some of products from catalog.
Product Description
The A 4906 is a versatile unit which accepts either a line level signal, balanced microphone signal or 100V input signal. The output signal is a line level signal suitable for feeding into an amplifier. Phantom power is available to the microphone input, and a VOX circuit, with adjustable sensitivity is used to trigger output relays. The unit is powered from a 24V DC source.
This unit does not include a power supply. Requires 24V DC @ 500mA. Suitable plugpack M 8968C.
Features
- Mic, line or 100V input level.
- Line level output.
- Phantom power to Mic Input (12V DC).
- Controls for master volume and VOX sensitivity.
- VOX operated relay outputs.
- 24VDC switched output. (120mA Max).
- 24VDC operation via 2.1mm DC power jack.
- Dimensions 133W x 30H x 80D mm.
