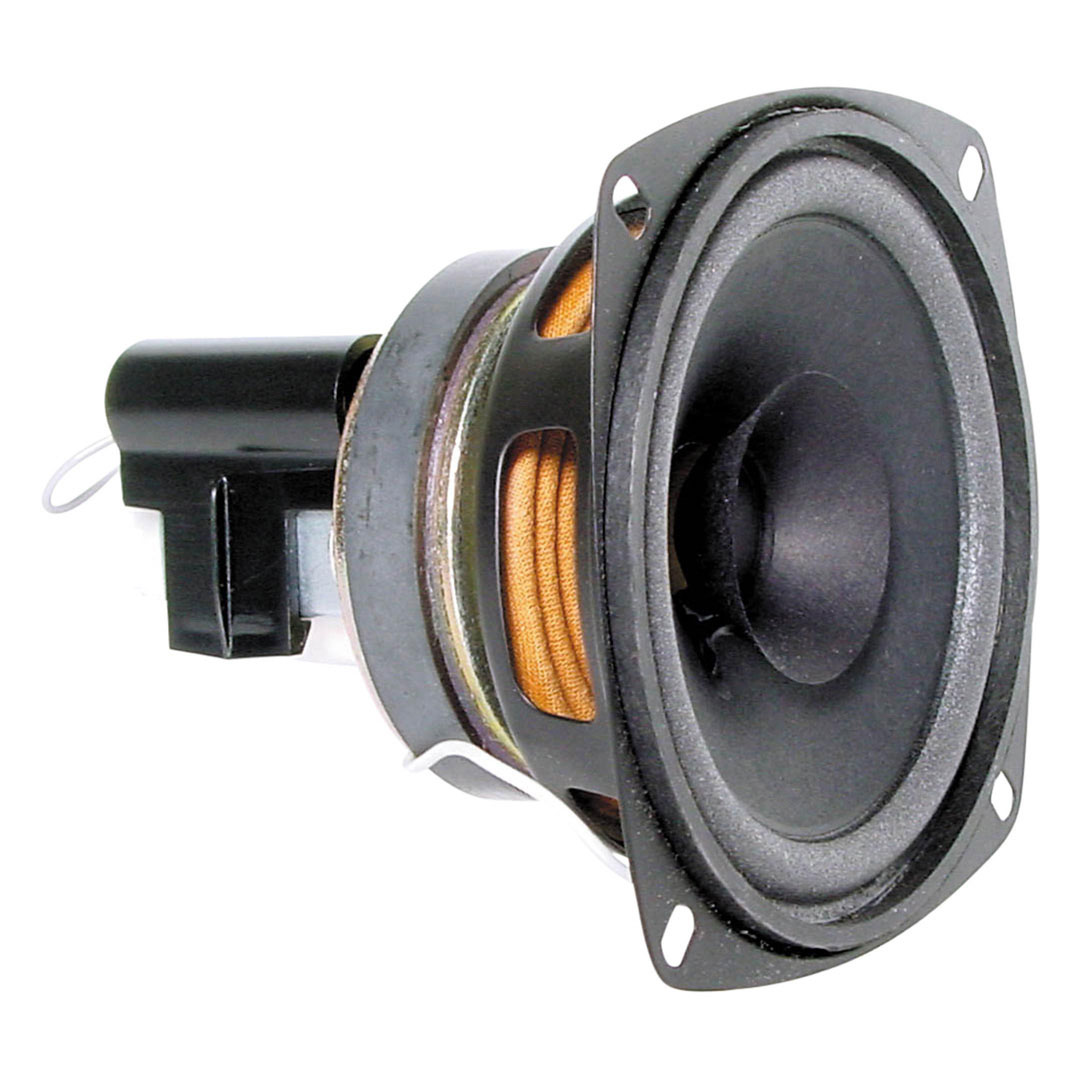

A-C2101C - Redback 100mm (4") 5W 100V Twin Cone EWIS PA Driver Speaker
Our Price
$44.60+GST
Before You Purchase
Some notices for your customer before he/she purchase some of products from catalog.
Product Description
This custom designed speaker and transformer combination has been specifically engineered to ensure a wide frequency range and dispersion angle, plus a high sound pressure level (SPL) ensuring excellent music and speech intelligibility; which is highly desirable for emergency paging applications.
Fitted with patented transformer safety cover and cable restraint mechanisms as required by Australian Standards. Additionally the cover also eliminates the possibility of short circuits occurring from contact with the likes of air conditioning ducts.
This driver exhibits optimum frequency response and efficiency for BGM, paging & EWIS applications. The transformer is wound on a professional grade grain oriented steel core for high efficiency and extended frequency response.
Fire Evac. Type:
This twin cone 4" speaker is fitted with 4 way wire protect terminal block & 22µF bipolar capacitor.
Specifications
Power Taps: 0.33, 0.66, 1.25, 2.5, 5 Watts
SPL 1W @ 1m: 90dB
Frequency Response: 100Hz - 15kHz
Ceiling Cut out: 102mm Ø
Connection: 4 way terminal block + 22uF bipolar capacitor
Note: All SPL figures are measured at 1KHz +/- 2dB.
